Aluminium Bronze Ball Valves for Seawater and Corrosive Service
Seawater, salt brine and corrosive chemicals eat standard steel valves. Ours are cast in ASTM B148 aluminium bronze and keep a tight shut-off on offshore platforms, desalination plants and marine works.
The Range in Numbers
Small Skids to 42-Inch Seawater Mains
Material Choice
Why Aluminium Bronze Wins in Salt Water
Carbon steel rusts in seawater. Common stainless grades pit in hot brine. ASTM B148 aluminium bronze is a copper alloy made for exactly these lines.
The alloy does the hard work, so maintenance stays light
B148 bronze does not rust in salt water, carries high-pressure classes, and resists wear from sand in the flow. The valve keeps closing tightly for years, with fewer overhauls and fewer spare parts.
In-Line or End-of-Line
Mount it between flanges or at the open end of a line. Built for frequent on-off cycling, not just occasional shut-off.
Actuator-Ready Top
The integrated mounting base takes pneumatic and electric actuators directly. No extra brackets, no machining on site.
Straight Through Flow
The open ball matches the pipe bore, so flow passes with less turbulence and less pressure drop.
Flow and wear in produced waterMade to open fully and close tight
Not for steam, throttling or flow regulation. Tell us your duty and we will point you to the right valve type.
Product Photos
The Bronze Range Up Close

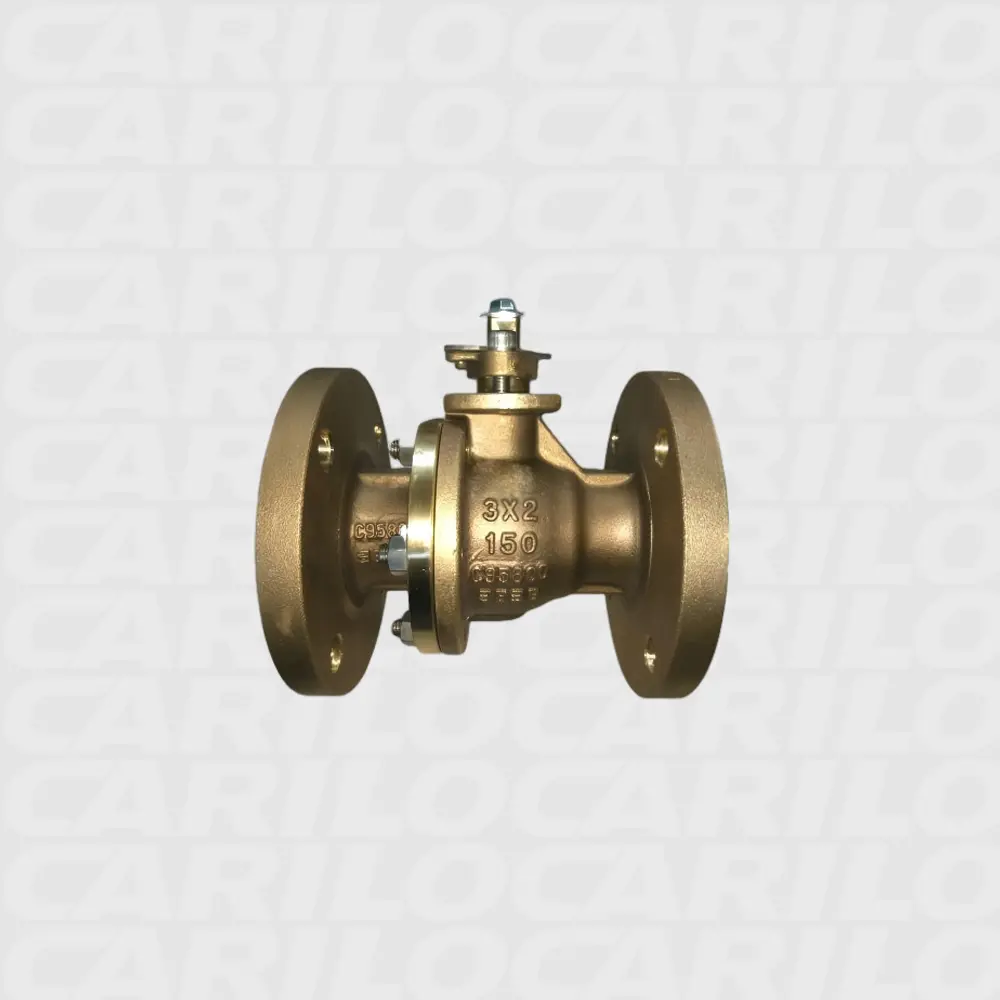

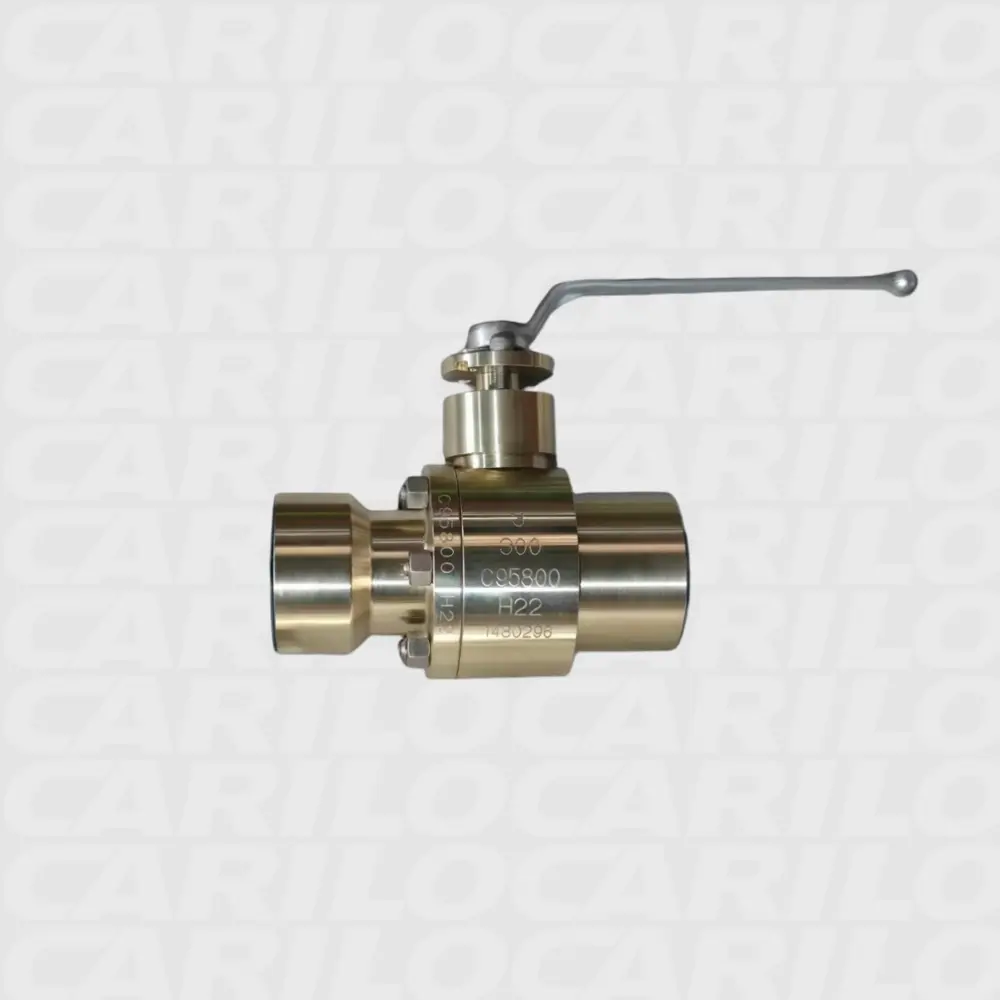

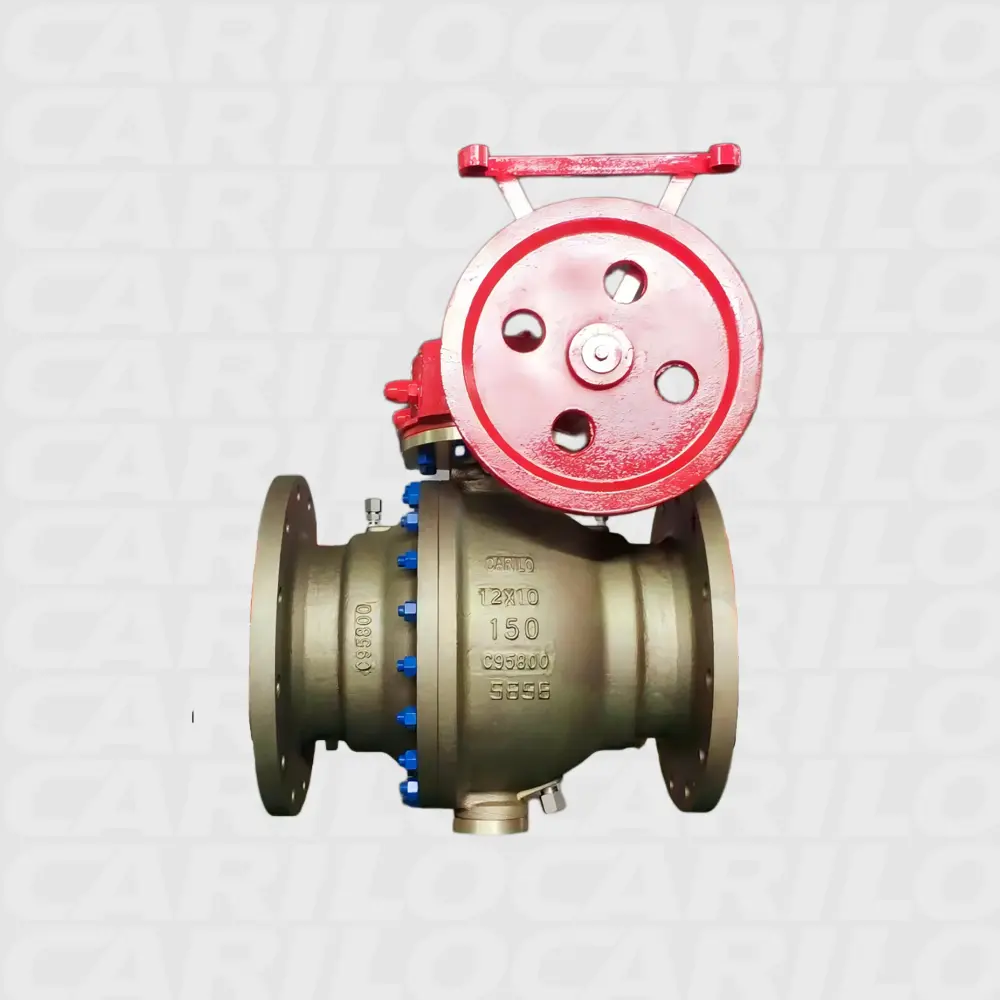

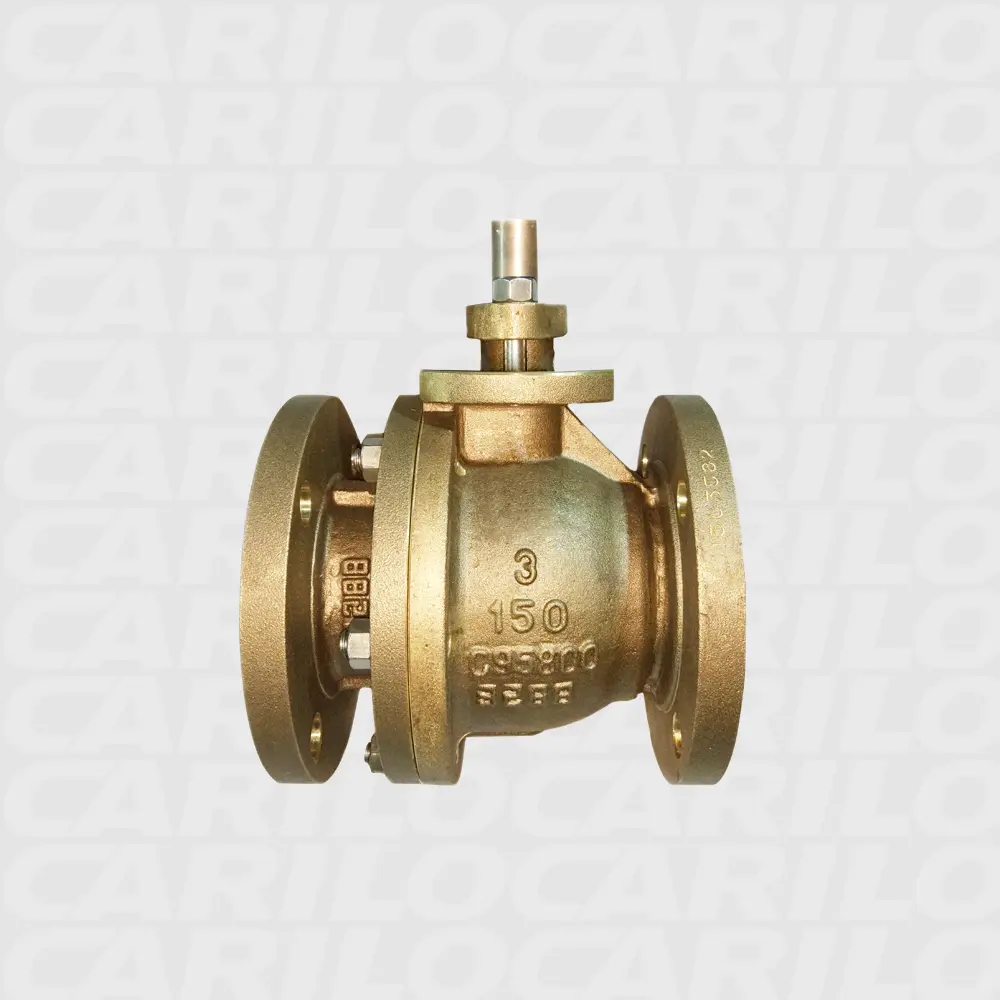

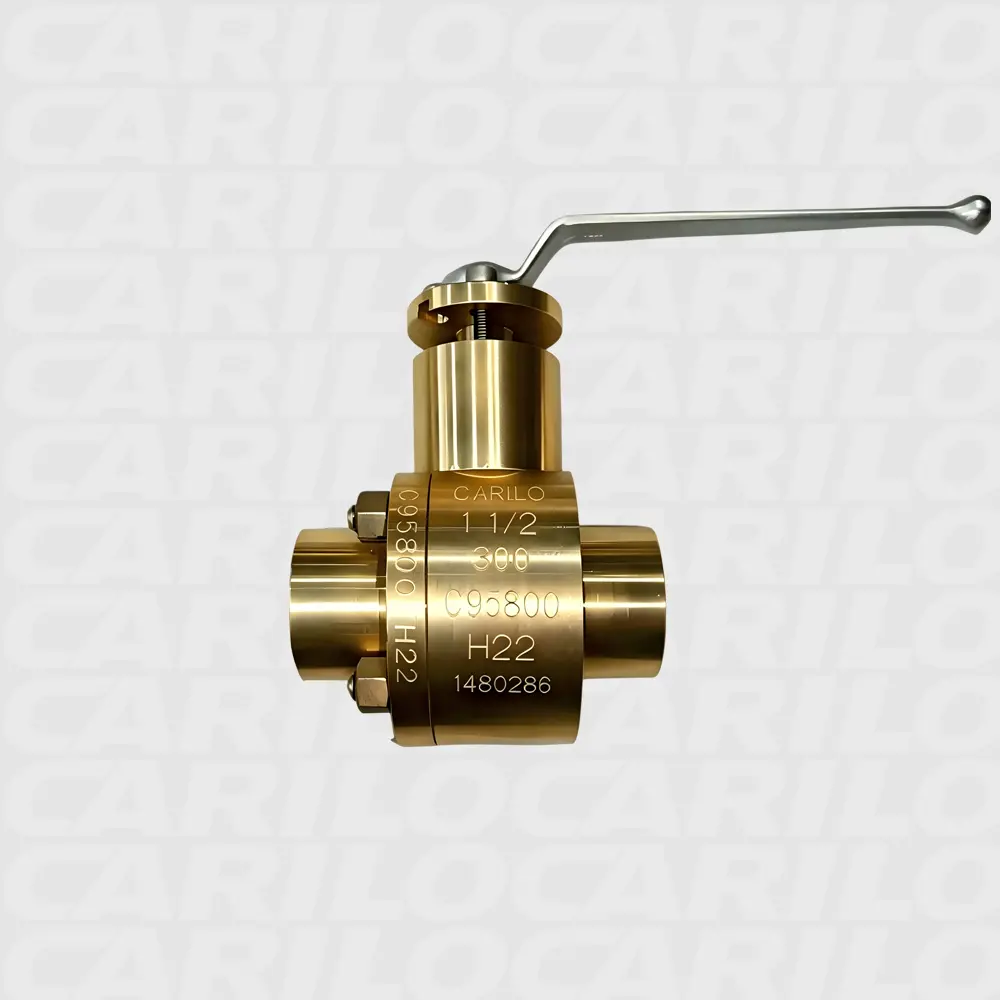

Lever, bare stem and gear-operated builds, from compact threaded valves to large flanged units.
NOTICE: © Valve images & products by CARILO VALVE. Unauthorized use prohibited
Specifications
Sizes, Pressures and End Connections
| Item | Range | What it means for you |
|---|---|---|
| Size | 2" to 42" | Small skid lines to large seawater mains from one supplier |
| Pressure class | 150LB to 2500LB | Water lines up to high-pressure process service |
| End connections | RF, RTJ, SW, BW, FNPT | Flanged, welded or threaded to match your piping |
| Port bore | Full-bore or reduced-bore | Full flow, or smaller bore where space and cost matter |
| Body material | ASTM B148 aluminium bronze | Alloy made for seawater and chemical service |
| Actuator mounting | ISO 5211 base | Direct fit for standard pneumatic and electric actuators |
Not sure which configuration fits? Send your pipe class and medium — we match it. Selection notes: seawater injection guide.
Optional Accessories
Optional Accessories for Your Ball Valve Configuration
Nine factory-fitted options. Tick what you need in the inquiry.
Insulation Stem Extension
Keeps the operator above the insulation layer.
Square Cap
For water main system connection.
Standard Stem Extension
Raises the hand lever for buried or deep lines.
Lockable Lever Kit
Padlock the valve open or closed.
Limit Switch Kit
Remote ON/OFF position indication.
ISO 5211 Flange Kit
Mounting flange for actuator assembly.
Pneumatic Actuators
Single-acting and double-acting types.
Electric Actuators
Motorised operation for remote lines.
Gear Boxes
Manual and chain-driven gear operators.
Applications
Where These Valves Go to Work
Any line where salt, chemicals or weather would eat a standard steel valve.
Naval and Offshore
Seawater cooling, ballast and fire lines on ships and platforms.
Desalination Plants
Intake, brine and product-water lines with high chloride.
Marine Engineering
Docks, jetties, coastal pump stations, harbour water systems.
Chemical Processing
Salt brines and corrosive chemical lines.
Power Generation
Seawater-cooled condensers and auxiliary water systems.
HVAC and District Heating
Heating and cooling water loops in buildings and networks.
Water Distribution
Municipal water lines, treatment plants, pumping stations.
Oils, Air and Agriculture
Oil and hydrocarbon lines, compressed air, farm water systems.
Field Proven
Specified Where Standard Steel Valves Do Not Last
Replacement and downtime cost far more than the valve.
Get a Quote for Your LineFactory and Testing
Machined, Inspected and Tested Before Shipping
Every valve leaves Wenzhou with dimensional checks, shell and seat pressure tests, and full paperwork.
Quality System
Documents That Travel With the Valve
- Dimensional drawings to verify fit before delivery.
- EN 10204 3.1 material certificates tracing the alloy back to the melt.
- API 598 pressure test reports for shell and seat tightness.
- Third-party inspection by SGS or BV on request.
Related Products
Other CARILO Ball Valve Lines
Same factory, different body materials and seat designs for different duties.
Bronze Valve Range
The full bronze line and material background.
High Pressure API 6D
Forged valves for high-pressure pipeline service.
Forged Metal Seated
Hot, abrasive lines up to 350°C, Class 150 to 2500LB.
Trunnion Soft Seated
Fixed-ball design for gas transmission lines.
Cast Ball Valves
WCB, CF8M and duplex casting, NPS 2 to 60.
Forged Cryogenic
Extended bonnet for LNG and low-temperature service.
Technical Articles
Read Before You Specify
Short guides on valve material choice for corrosive media.
About CARILO
A Ball Valve Factory, Not a Trading Desk
Zhejiang Carilo Valve Co., Ltd. has made industrial ball valves in Wenzhou since 2000 — OEM and ODM for brands worldwide.
FAQ
Common Questions About Bronze Ball Valves
Why aluminium bronze for seawater valves?
ASTM B148 aluminium bronze does not rust in seawater and salt brine, it is strong enough for high-pressure classes, and it resists wear from sand in the flow. The valve keeps a tight shut-off longer, with less maintenance.
What sizes and pressure classes are available?
2 inches to 42 inches, Class 150LB to 2500LB, full-bore or reduced-bore, with RF, RTJ, socket weld, butt weld or female NPT ends.
Can I automate these valves?
Yes. The integrated ISO 5211 mounting base takes pneumatic and electric actuators, gear boxes and limit switches directly, without extra brackets.
Can I use these valves to regulate flow?
No. They are on-off isolation valves, not for steam service, throttling or flow regulation. Tell us your duty and we will suggest the right valve type.
Which industries use them?
Naval and offshore platforms, seawater systems, desalination plants, marine engineering, chemical processing, power generation, HVAC and district heating, water distribution and treatment, agriculture, compressed air, and oil and hydrocarbon lines.
What should I send for a quotation?
Valve size, pressure class, end connection, bore type, medium and temperature, plus the actuator or accessory options you need. We reply with a matched configuration and price.
Fast Quote
Send These 6 Details for a Matched Quote
Valve size
Nominal bore, 2" to 42".
Pressure class
150LB to 2500LB, or your flange standard.
End connection
RF, RTJ, socket weld, butt weld or female NPT.
Bore type
Full-bore or reduced-bore.
Medium and temperature
Seawater, brine or chemical name, and working temperature.
Actuation and accessories
Lever, gear, pneumatic or electric, plus any kits.
Talk to an Engineer
Get a Bronze Valve Quote Within One Working Day
Send your size, pressure class and medium. We reply with a matched configuration, drawings and pricing.
Zhejiang Carilo Valve Co., Ltd. — Wenzhou, Zhejiang, China. Exporting to Europe, the Middle East and Southeast Asia since 2000.
