CARILO high-precision ball valves are fully engineered to API 6D and ASME B16.34 standards, specifically optimized for high-pressure flow regulation in upstream and downstream oil and gas operations. Utilizing ASTM A216 WCB or A351 CF8M investment casting bodies, these valves maintain structural integrity under extreme pressures up to Class 2500 (6,170 PSI) and temperatures ranging from -29°C to 425°C.
Our designs prioritize ISO 5208 Rate A zero-leakage performance and are API 607 Fire-Safe certified, ensuring failsafe operation in volatile petrochemical environments. To maximize project ROI, 100% of CARILO valves undergo rigorous shell and seat pressure testing per API 598 before dispatch. This stringent QA process ensures a 99.9% operational reliability rate, effectively reducing field maintenance downtime by 25% compared to standard industrial alternatives

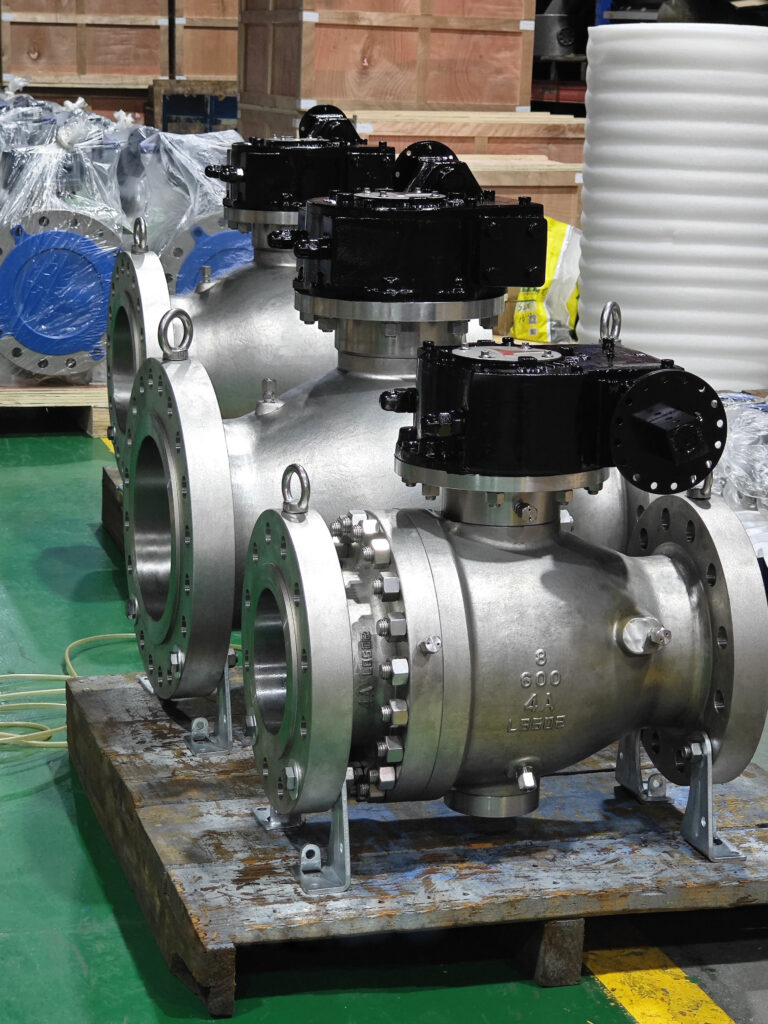

Casting vs. Forged Structure

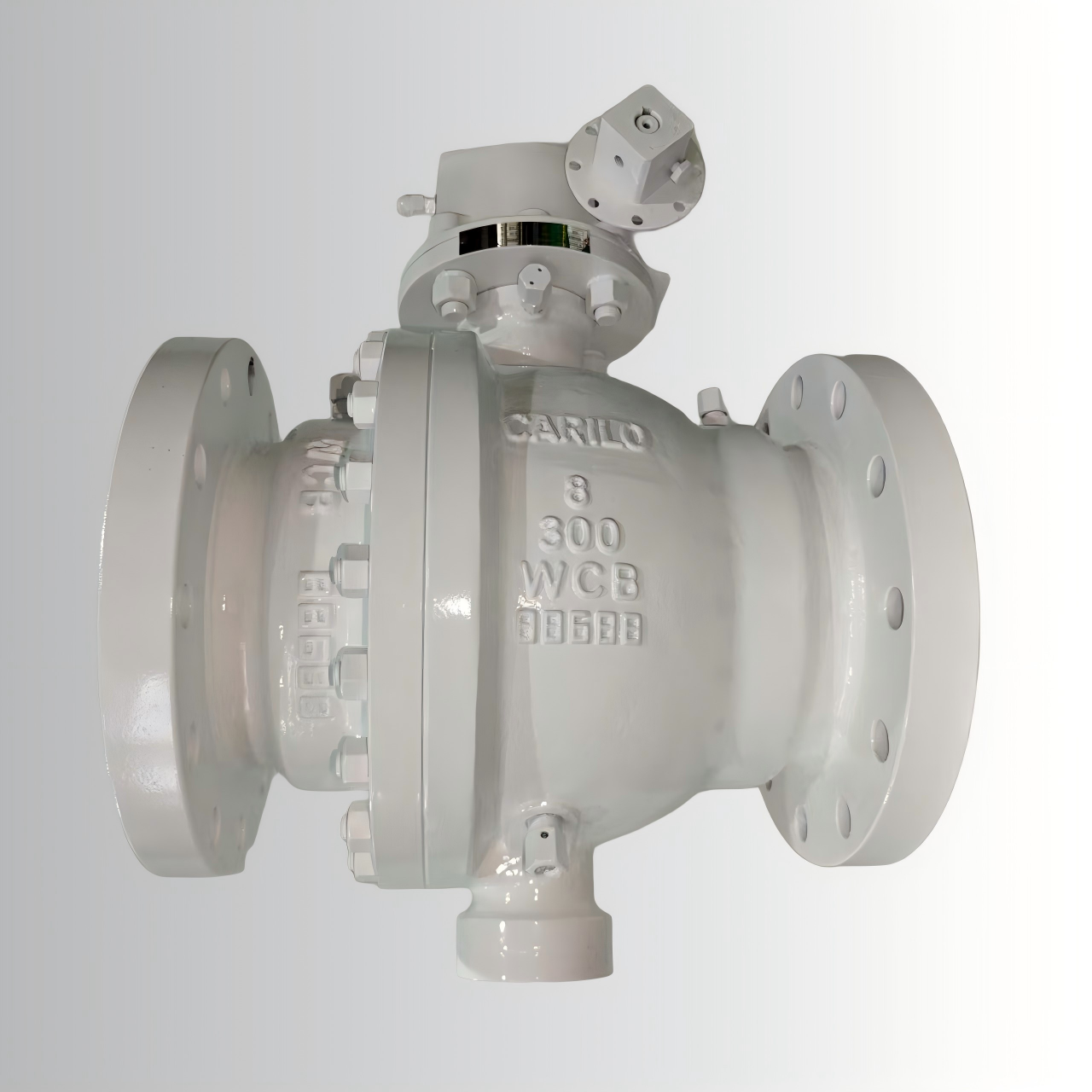

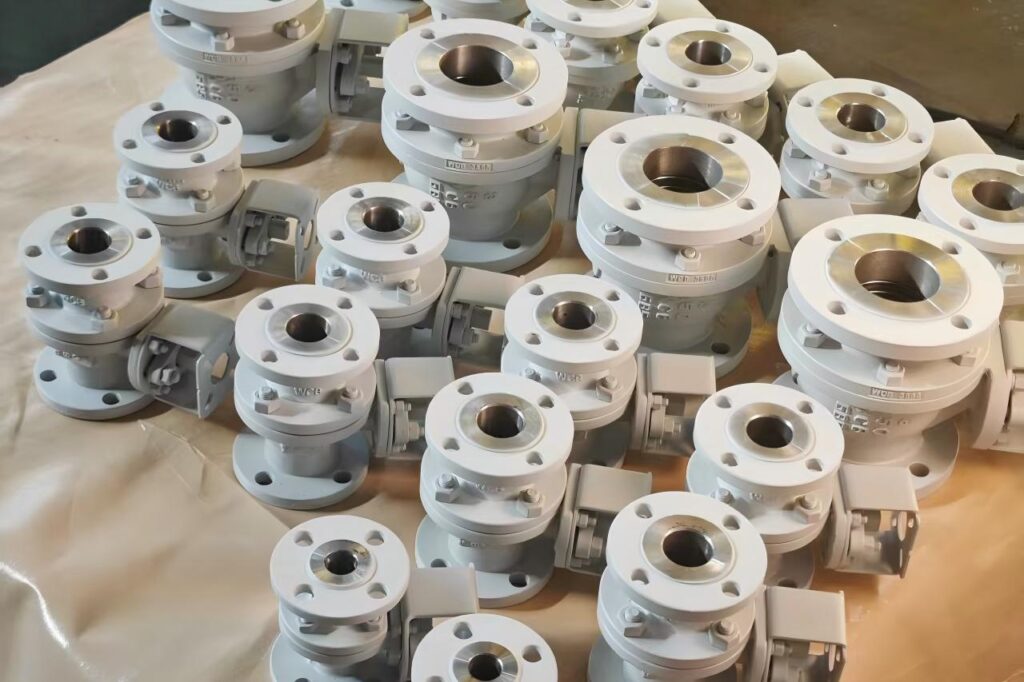

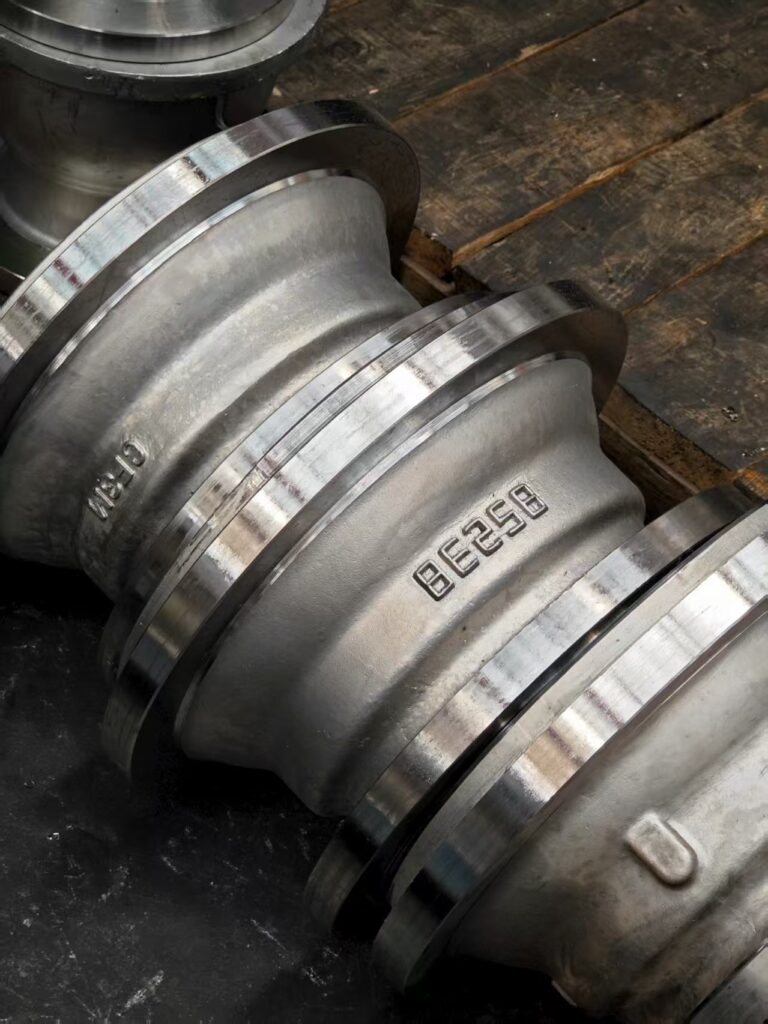

Manufactured using ASTM A216 WCB or A351 CF8M alloys, our casting ball valves offer superior design flexibility for complex internal geometries and larger bore sizes. By adhering to ASME B16.34 wall thickness standards, these valves provide a high-strength alternative to forged options, typically reducing procurement costs by 20-30% for Class 150 to Class 600 applications. The precision casting process ensures streamlined flow paths that minimize turbulence and pressure drop (ΔP). While forged valves are reserved for extreme high-pressure cycles, our casting series delivers the optimal balance of ASTM-certified reliability and scalability. For EPC contractors and global distributors, this represents a high-integrity solution that meets API 6D performance requirements while optimizing project CAPEX.
Material Options
CARILO casting ball valves are engineered in a diverse range of high-grade metallurgies, including ASTM A216 WCB, A351 CF8M, and Duplex A890 4A/5A. This material versatility ensures full compliance with NACE MR0175/ISO 15156 standards for sour gas and aggressive chemical environments. While WCB carbon steel provides high-strength economy for mid-range temperatures, our Duplex and Super Duplex alloys deliver a Pitting Resistance Equivalent Number (PREN) >35 for high-chloride service. To guarantee zero-defect casting integrity, we implement 100% Non-Destructive Testing (NDT), including Radiographic (RT) and Magnetic Particle (MT) inspections per ASME B16.34. By precision-matching metallurgy to specific pH and pressure profiles, we extend valve service life by 30-40% and significantly optimize project lifecycle costs.
Pressure & Temperature Range
Compliant with ASME B16.34 and API 6D, our casting ball valves are engineered for rigorous service from Class 150 (PN20) to Class 600 (PN100). Utilizing ASTM A216 WCB or A351 CF8M with verified induction heat treatment, we guarantee mechanical stability across a wide thermal gradient from -29°C to 425°C (-20°F to 800°F). To ensure zero-leakage integrity, every valve undergoes 100% hydraulic shell testing at 1.5x design pressure and seat testing per API 598 (Rate A). For midstream and downstream infrastructure, our precision-cast series delivers ASTM-certified structural integrity with a 20-25% reduction in procurement CAPEX compared to forged alternatives. This represents a high-ROI solution for large-scale EPC projects that demand strict adherence to safety benchmarks and optimized lifecycle cost-efficiency.
Design Flexibility & Size Range
Utilizing advanced sand and investment casting, CARILO produces ball valves in a comprehensive range from NPS 2 to NPS 60 (DN50–DN1500). This process enables complex internal geometries that optimize Flow Coefficients (Cv) by up to 15% compared to standard forged configurations, effectively minimizing pressure drop (ΔP) in high-capacity pipelines. We maintain rigorous dimensional accuracy within ISO 8062 CT10-12 grades and ensure a surface finish of Ra 6.3–12.5 µm per MSS SP-55 standards. By adhering to ASME B16.34 wall thickness minimums and API 6D specifications, these valves provide high-integrity performance for refining and petrochemical facilities. For global EPC contractors, our precision-cast solutions offer a 10-15% reduction in total valve weight without compromising structural safety, significantly optimizing logistics and project CAPEX.
Applications in Oil, Gas & Chemicals

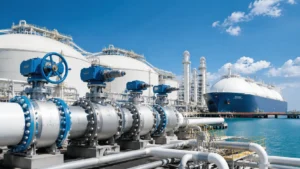

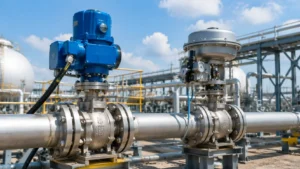

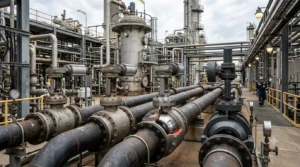

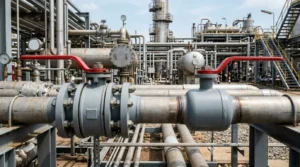

CARILO casting ball valves are engineered for mission-critical service across the hydrocarbon value chain, including API 6D pipeline transmission, ASTM-grade refinery units, and downstream petrochemical processing. Optimized for Class 150 to Class 600 (PN20–PN100) systems, these valves deliver API 598 Rate A (Zero-Leakage) shutoff in utility lines and midstream storage facilities. Utilizing NACE MR0175/ISO 15156 compliant metallurgy, our series effectively manages sour crude, natural gas liquids (NGLs), and high-pressure steam with a verified operational durability of 50,000+ cycles. For global EPC contractors and stockists, our precision-cast designs reduce procurement CAPEX by 20–30% while maintaining ISO 15848-1 fugitive emission control, ensuring an optimal balance of lifecycle reliability and project profitability in high-demand environments.
What Causes Ball Valve Seat Extrusion at High Pressure? | Polymer Clearance, Differential Pressure, Temperature
Ball valve seat extrusion usually starts when differential pressure pushes PTFE, RPTFE, PEEK or another polymer into a gap that does not give the seat enough support. When checking a failed valve, start with three
Why Does a Ball Valve Leak at Low Pressure
A ball valve that leaks at low pressure but seals better as pressure rises usually has one of four problems: the valve does not have enough seat force at low differential pressure, the seat or
Why Does a Ball Valve Jam After Shutdown
A ball valve usually jams after shutdown because the torque needed to start it has increased, or the actuator can no longer deliver enough torque. In practice, the quickest clues are pressure, temperature, what happened
When Should Valve Sealant Be Injected
Use valve sealant only when the valve has an injection system made for the problem you are dealing with. In practice, that usually means minor seat leakage, certain stem leaks, or routine sealant service on
How Often Should Pipeline Ball Valves Be Exercised
For a normally static, non-regulated pipeline ball valve in clean, stable service, 6–12 months can be used as a maintenance planning range. That works out to about 1–2 planned checks per year. Where the valve
Why Is a New Ball Valve Hard to Turn
A new ball valve is usually hard to turn for one of four reasons: new seat and stem-seal friction, high starting torque, pressure loading the seats, or stress added during installation. If the handle feels
Why Does a DBB Valve Bleed Port Stay Pressurized? | Seat Leakage, Trapped Fluid, Vent Routing
If a DBB valve bleed port stays pressurized after the cavity has been safely vented, compare the cavity pressure with four values: upstream pressure, downstream pressure, vent-header pressure, and valve temperature. Pressure moving toward one
How Large Should the Bleed Connection Be on a DBB Valve? | Depressurization Time, Fluid Phase, Safe Discharge
Do not choose a DBB bleed from the main valve NPS alone. Choose the effective flow path that can reduce the trapped cavity from the starting pressure to the required final pressure within the allowed
How Long Can Ball Valves Be Stored Before Installation? | Preservation, Flange Covers, Seal Aging
Ball valves do not have one fixed warehouse expiration date. A valve stored correctly for several years may still be suitable for installation, while a valve stored for only a few months may need repair
How to Flush a Pipeline Without Damaging Ball Valve Seats | Temporary Strainers, Valve Position, Debris Control
Keep normal on-off ball valves fully open during through-flushing unless the valve manual requires removal or another position. Remove large construction debris before starting the pump, install temporary strainers before sensitive valves and equipment, and
Order & Payment
Most Popular Questions
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Casting ball valves offer superior design flexibility for complex internal geometries and larger bore sizes up to NPS 60. They typically reduce procurement CAPEX by 20-30% while maintaining API 6D structural integrity for Class 150-600 applications.
Our valves are engineered to ASME B16.34 and API 6D standards, with materials meeting NACE MR0175/ISO 15156 for sour gas service. Fire safety is certified to API 607, and fugitive emissions are strictly controlled per ISO 15848-1.
We utilize ASTM A216 WCB and A351 CF8M alloys with 100% Non-Destructive Testing (NDT), including Radiographic (RT) and Magnetic Particle (MT) inspections. This ensures a surface finish of Ra 6.3–12.5 µm per MSS SP-55 and minimizes porosity defects.
Designed for Class 150 to Class 600 ratings, our WCB valves operate reliably from -29°C to 425°C (-20°F to 800°F). Advanced normalizing and tempering heat treatments ensure grain refinement and thermal stability across diverse midstream and downstream environments.
Yes, our Duplex A890 alloys provide a PREN >35 for high-chloride service. Additionally, the precision casting process optimizes Flow Coefficients (Cv) by up to 15%, reducing pressure drop (ΔP) in high-capacity pipelines from DN50 to DN1500.
Every valve undergoes 100% hydraulic shell testing at 1.5x design pressure and seat testing per API 598 (Rate A). This guarantees zero-leakage performance and an operational durability exceeding 50,000+ cycles for mission-critical industrial projects.
