The brand name is only the start of the selection. The approved valve must match the actual steam state, design temperature, maximum differential pressure, operating frequency, closing time, leakage limit, pipe material and maintenance plan.
This article mainly applies to fossil-fuel and combined-cycle power plants. Nuclear safety-related valves require additional design qualification, quality assurance, documentation and regulatory review. A valve accepted for auxiliary steam should not automatically be approved for main steam, hot reheat or turbine bypass service.
Safety note: High-energy steam can cause fatal burns and sudden pressure releases can occur at valves, flanges and other steam-system components. Valve sizing, material selection, actuator sizing, piping-code compliance and site operation must be reviewed by qualified engineers.[1] ASME B31.1 sets requirements for piping systems commonly found in electric power generating stations.[2] Nuclear valves that perform safety functions require additional qualification beyond ordinary industrial valve selection.[3]
Selection Heat Map
The table shows the normal first valve type to evaluate. It does not mean that every valve of that type is suitable for the stated service.
| Application | Gate Valve | Globe Valve | Metal-Seated Ball Valve | Main Risk to Check |
|---|---|---|---|---|
| Main steam isolation | Normal first choice | Possible for smaller sizes | Project-specific option | Thermal binding, pressure locking, creep and actuator thrust |
| Hot reheat isolation | Normal first choice | Possible | Project-specific option | High temperature, thermal cycling and material capability |
| Cold reheat isolation | Good | Possible | Good for frequent operation | Start-up condensate and operating frequency |
| Boiler stop service | Common for large-bore isolation | Globe or stop-check design may be required | Uncommon | Boiler-code boundary, full differential pressure and required function |
| Turbine bypass | Not suitable for normal control | Normal first choice | Special control design only | Choked flow, noise, wet steam, erosion and desuperheating |
| Steam pressure reduction | Poor | Normal first choice | Purpose-designed rotary trim only | Pressure ratio, trim velocity, noise and low-load stability |
| Warm-up line | Poor for controlled throttling | Good for controlled heating | Good for on/off duty | Downstream heating rate and condensate removal |
| Drain isolation | Possible | Good | Good for frequent cycling | Flashing condensate, erosion and leakage after cycling |
| Vent isolation | Possible | Good | Good for rapid operation | Outlet velocity, noise and safe discharge location |
| Soot-blower steam | Possible | Special globe or soot-blower valve | Possible with proven cycle data | OEM system design, cycle life and tight shutoff |
| Large-bore isolation | Normal first choice | Heavy and costly | Possible but often expensive | Installed weight, actuator size and maintenance access |
| Emergency isolation | Usually slower | Depends on actuator and travel | Often suitable for rapid isolation | Transient pressure, closing time, fail action and stored energy |
A quarter-turn ball valve may close quickly, but rapid closure is not automatically safe. The piping engineer must check the pressure transient, allowable closing time, actuator fail action and body-cavity pressure relief.
| Performance Area | Gate Valve | Globe Valve | Metal-Seated Ball Valve |
|---|---|---|---|
| Full-open pressure loss | Low | Relatively high | Low in full-bore designs |
| Normal throttling ability | Poor | Excellent with correct trim | Limited unless purpose-designed |
| Typical travel characteristic | Multi-turn, normally slower | Linear travel | Quarter-turn, often faster |
| Large-size availability | Excellent | Available but heavy | Good, with rapidly increasing cost |
| High-cycle isolation | Moderate | Moderate to good | Good when correctly engineered |
| High-pressure-drop control | Poor | Excellent with engineered trim | Special control designs only |
| In-line maintenance after isolation | Depends on bonnet and internal design | Often practical in top-entry designs | Depends on top-entry, side-entry or welded-body construction |
| Main failure concern | Binding, seat damage and actuator overload | Trim erosion, noise and unstable control | Coating wear, torque rise and cavity overpressure |
Typical Hydraulic and Travel Ranges
The figures below are broad screening ranges for conventional designs. They are not acceptance limits. Actual pressure loss and travel time depend on valve size, port geometry, trim, actuator output, gearing, available power and the permitted closing transient.
| Valve Type | Illustrative Full-Open Resistance Coefficient K | Illustrative Actuated Travel Time | Practical Meaning |
|---|---|---|---|
| Full-bore ball valve | About 0.05–0.2 | About 1–15 seconds with pneumatic or hydraulic actuation | Low full-open loss and fast quarter-turn movement |
| Fully open gate valve | About 0.1–0.3 | About 30–180 seconds for many large motor-operated packages | Low loss, but long stem travel makes rapid operation less practical |
| Y-pattern globe valve | About 2–5 | About 3–30 seconds with pneumatic or hydraulic actuation | Lower loss than a conventional globe body while retaining control capability |
| Conventional globe valve | About 6–12 | About 3–30 seconds with pneumatic or hydraulic actuation; motor-operated units may take 20–120 seconds | Higher permanent loss, but better throttling and pressure-reduction capability |
A resistance coefficient is only an approximation. Reducers, partial bore, cages, multistage trim and downstream fittings can change the installed pressure loss substantially. Actual opening and closing time must also be confirmed for the complete valve-actuator package. For rotary valves, the ball valve pressure-drop and Cv guide explains why bore geometry and flow coefficient should be checked instead of assuming that every ball valve has the same hydraulic performance.
Define the Service First
A reliable valve quotation starts with a clear service definition. Avoid descriptions such as “high pressure steam valve” or “high-cycle valve” without measurable operating data.
Valve Duty
- For fully open or fully closed isolation, compare gate and ball valves.
- For continuous intermediate travel, use a globe valve or a purpose-designed rotary control valve.
- For a valve that opens slowly during plant start-up, treat the service as a control duty even if the final position is fully open.
- For a control valve that must also isolate, specify both control performance and the required closed-seat leakage.
A normal gate valve should not be used for continuous throttling. A standard round-port ball valve should not be used for fine control close to the seat.
Cycle Rate
State expected cycles per day, cycles per year and total design-life cycles. These numbers affect seat design, bearings, packing, actuator life and inspection intervals. The arithmetic below shows why the phrase “daily operation” is not precise enough.
| Illustrative Operating Pattern | Cycles per Year | Cycles in 10 Years | Main Concern |
|---|---|---|---|
| Once per month | About 12 | About 120 | Long idle periods, corrosion, packing condition and first-operation torque |
| Once per day | About 365 | About 3,650 | Repeatable shutoff, packing wear and actuator reliability |
| Twice per day | About 730 | About 7,300 | Cycle-rated seats, bearings, packing and planned inspection intervals |
| 20 times per day | About 7,300 | About 73,000 | High-cycle qualification, actuator life, coating wear and spare-part planning |
These values are simple calendar calculations, not industry acceptance limits. The purchase specification should use the plant’s actual operating sequence and include expected test strokes, partial strokes and maintenance cycling where relevant.
Maximum Differential Pressure
Normal line pressure is not enough. Calculate the differential pressure during cold start, warm start, normal load, plant trip, emergency closure, opening into a depressurized line and full upstream pressure with zero downstream pressure.
The actuator must operate the valve under the worst credible condition. For a ball valve, use supplier-confirmed torque at the specified temperature and differential pressure rather than a room-temperature catalogue value. The practical differences between floating and trunnion-mounted ball valves become more important as size, pressure and automation requirements increase.
Steam State
Identify whether the valve handles dry superheated steam, saturated steam, wet steam, condensate or a changing mixture during start-up and shutdown.
Wet steam and flashing condensate can cause rapid trim and seat damage. Before changing the valve, review pipe slope, low-point drains, steam traps, warm-up procedures, bypass sequencing and temperature-control logic. A premium valve cannot correct a piping system that repeatedly sends condensate into the trim.
Failure Effect
Define the result of failure to open, failure to close, external leakage or seat leakage. The specification should become more demanding as the consequence rises from a minor auxiliary-steam loss to a unit trip, equipment damage or personnel exposure.

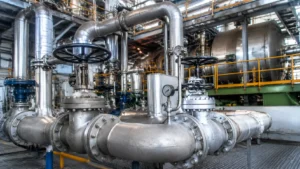

Gate Valves
Gate valves are normally the first choice for large steam lines that require low pressure loss and long periods in the fully open position.
Best Applications
- Main steam isolation
- Hot and cold reheat isolation
- Large steam headers
- Main steam branch isolation
- Large high-pressure lines that normally remain in one position
Wedge and Parallel-Slide Designs
A solid wedge is simple and strong but has limited ability to adjust when the body seats move with temperature. A flexible wedge can tolerate small alignment changes, but it can still bind. A split wedge uses two parts that align with the seats. A parallel-slide design uses parallel discs and does not rely on driving a tapered wedge deeply between two seats.
Do not approve a valve from the words “flexible wedge” or “parallel slide” alone. Ask how the seats are loaded, how cavity pressure is relieved, whether sealing depends on line pressure and how the sealing surfaces can be repaired.
Pressure Locking
Pressure locking occurs when pressure trapped in the bonnet or body cavity becomes substantially higher than the connected line pressure. It may result from thermal expansion, seat leakage or changes in upstream and downstream pressure. The resulting force can prevent the gate from opening.
Possible controls include an approved relief hole, an external equalizing line or a self-relieving disc arrangement. Relief direction must be identified because installation direction can affect performance.
Thermal Binding
Thermal binding is different from pressure locking. A wedge valve closed while hot may become tightly held when the body, seats and wedge cool at different rates.
Increasing actuator torque is not automatically the correct response. Excessive thrust can damage the stem, wedge, gearbox or seats. First determine whether the problem is trapped pressure, thermal movement, incorrect switch settings or internal damage.
Pressure-Seal Bonnet
Pressure-seal bonnets are common on high-pressure power-plant valves. Internal pressure increases the gasket seating load during operation, but correct initial assembly and preload are still required for cold and low-pressure sealing.
The owner should obtain the manufacturer’s assembly and disassembly procedure before the first outage. Scratched sealing surfaces, reused gaskets, incorrect assembly position, contamination or the wrong gasket material can cause leakage.
Equalizing Bypass
A bypass around a large gate valve can equalize pressure, warm the downstream line, reduce thermal shock and lower the required opening thrust. The bypass size and operating sequence must be calculated. An undersized bypass may take too long to equalize pressure, while an oversized bypass can heat or pressurize the downstream line too quickly.
Actuator Sizing
A motor-operated gate valve must overcome stem-thread friction, packing friction, seat friction, fluid force, wedge release force and gearbox losses. Request breakaway thrust, running thrust, seating thrust, maximum allowable stem thrust, opening time at minimum voltage and calculations at maximum differential pressure.
Torque switches protect the valve and actuator from overload. Limit switches stop travel at a defined position. Incorrect settings can leave the valve partly open or apply damaging load to the stem and wedge.
Main Limit
Do not use a standard gate valve for continuous steam throttling. A partly open gate concentrates high-velocity steam around a small area, which can cause vibration, wire drawing, guide wear, noise and loss of shutoff capability.
Globe and Steam-Conditioning Valves
Globe and angle control valves are the normal choice when steam flow, pressure or temperature must be controlled.
Best Applications
- Turbine bypass
- Steam pressure reduction
- Steam conditioning and desuperheating
- Start-up steam control
- Warm-up lines
- Continuous drains and controlled vents
- Auxiliary steam control
Spray-water and feedwater valves use similar globe-valve principles, but their primary medium is liquid water rather than steam and they should be specified as separate services.
Body Pattern and Flow Direction
A straight-pattern globe valve provides stable control but usually has a higher full-open pressure loss. A Y-pattern valve has a straighter flow path. An angle valve changes the pipe direction and is often used for bypass, drain and vent service.
Flow direction affects actuator thrust, plug stability, seat loading and fail action. There is no single correct direction for every globe valve. The body arrow must match the approved process and piping drawings.
Balanced and Unbalanced Plugs
An unbalanced plug can require a large actuator because pressure acts across much of the plug area. A balanced plug reduces net fluid force but adds balancing seals and possible leakage paths. Ask the supplier to state effective pressure area, balancing-seal material, maximum unbalanced force, required shutoff thrust and expected leakage after wear.
Choked Flow and Noise
As steam pressure drop increases, a limiting flow condition can occur at the valve restriction. Further reduction in downstream pressure may no longer produce a proportional increase in mass flow. Choked flow can be associated with high noise, vibration, trim erosion and damaging outlet velocity.[4]
A correct control-valve calculation must check more than Cv. It should include minimum, normal and maximum flow, inlet and outlet pressure, steam temperature, valve travel, predicted noise, trim exit velocity and downstream pipe velocity. FCI guidance also identifies process conditions, valve style, materials, shutoff and production testing as part of control-valve sizing and selection.[5]
Multistage Trim
Multistage trim divides one large pressure drop into several smaller pressure drops. This can reduce local jet velocity, noise and direct impingement on the valve body. More stages are not automatically better because narrow passages can reduce capacity and complicate inspection or cleaning.
Low-Load Control
Maximum flow is not the only sizing condition. An oversized valve may operate close to the seat at low load, where a small stem movement causes a large flow change. This can produce hunting, temperature fluctuation, repeated positioner movement and rapid seat wear.
Require the supplier to show valve travel, predicted noise and recommended continuous operating range at minimum, normal and maximum flow.
As a preliminary review flag, continuous operation below roughly 10%–15% travel may indicate oversizing or poor low-flow resolution, while sustained operation above roughly 85%–90% travel may leave little capacity for disturbances or future load growth. These percentages are screening values, not universal acceptance criteria; the usable range depends on trim characteristic, actuator resolution, process gain and the supplier’s validated sizing calculation.
Desuperheating
A steam-conditioning valve reduces pressure and injects water to reduce temperature. Reliable temperature control depends on water pressure, nozzle design, droplet size, steam velocity, evaporation distance, pipe diameter, water quality and minimum steam flow.
If droplets do not evaporate before reaching the pipe wall or temperature sensor, the system can suffer thermal stress, erosion and unstable temperature readings. The required downstream straight length and sensor location must be calculated for the actual operating cases.
Metal-Seated Ball Valves
Ball valves use quarter-turn movement and are useful for frequent on/off operation, rapid isolation, drains, vents and steam switching. High-temperature or high-pressure steam normally requires an engineered metal-seated design rather than a general-purpose soft-seated valve.
For a practical sizing sequence, review the steam-service ball valve sizing and temperature-derating guide. It explains why pressure class, seat material, hot torque and steam condition must be checked together.
Soft Seats
A valve-body pressure class does not define the allowable temperature of a polymer seat. Check the manufacturer’s pressure-temperature chart for the exact body, seat, packing and valve model. Do not assume that a Class 600 body makes a soft seat suitable for Class 600 steam conditions.
The soft-seated versus metal-seated comparison can help separate low-temperature tight-shutoff service from high-temperature, abrasive or high-cycle service.
Metal Seats and Coatings
A metal-seated valve uses metal sealing surfaces on the ball and seats. Performance depends on base materials, hardfacing or coating process, coating thickness, surface finish, hardness relationship, thermal expansion and seat loading.
Possible failures include coating separation, scratching, galling, thermal-cycle cracking and loss of sealing geometry after poor repair. Ask where coating and final lapping are performed and whether the repair facility follows the original manufacturing procedure.
For service above normal soft-seat limits, the high-temperature metal-seated valve specification guide provides a useful checklist for seat design, thermal expansion, packing and hot-service acceptance.
Floating or Trunnion-Mounted
A floating ball is supported mainly by its seats. Line pressure pushes the ball toward the downstream seat, so operating torque generally rises with pressure and size. A trunnion-mounted ball is mechanically supported while the seats move toward the ball, making it more practical for many larger, higher-pressure or automated services.
Neither design should be selected from a fixed size rule alone. Verify low-pressure sealing, maximum-pressure seat loading, bearing loads, thermal clearances, hot torque and seat-relief direction.
Body-Cavity Pressure
Steam or condensate can become trapped in a closed ball-valve cavity. Heated trapped liquid can create dangerous pressure. The supplier must state whether the seats self-relieve, which direction they relieve, whether the valve is bidirectional and whether an external cavity-relief connection is required.
A double-piston-effect seat may improve isolation from both directions, but it requires a defined cavity-pressure relief strategy.
Hot Torque and Actuator Margin
Actuator sizing should not rely only on room-temperature factory torque. Request cold and hot breakaway torque, running torque, end-to-close torque, torque at maximum differential pressure, torque after long idle periods and torque after the specified number of cycles.
The actuator must deliver sufficient output at minimum available air pressure, voltage or hydraulic pressure without exceeding the valve stem’s maximum allowable torque. The valve torque curve guide explains how to compare break, run and reseating torque without applying an unsupported universal multiplier.
Seat Leakage
Metal-seated does not mean absolute zero leakage. Define the test standard, medium, pressure, direction, temperature, allowable leakage and any required leakage limit after cycle testing.
ANSI/FCI 70-2 provides benchmark leakage classes for control valves under defined test conditions. It should not be treated as identical to an isolation-valve test under API 598 or to a project-specific hot-steam test.[6]
Do not use “zero leakage,” “bubble-tight” and “Class VI” as interchangeable terms. When leakage appears in service, first identify whether the path is through the seat, stem packing, body joint or connected piping. The ball valve leakage diagnosis guide provides a field-oriented sequence.
CARILO Product Option
For project-specific severe-service isolation, CARILO offers forged metal-seated ball valves. Approval should still be based on the quoted valve’s exact size, class, material, temperature limit, leakage grade, coating system, cavity-relief design, hot torque and comparable steam references. For broader forged constructions, see the high-pressure forged ball valve range.
Brand Shortlist
A practical shortlist should be based on the exact product family and manufacturing location, not only on the corporate brand. Ask every supplier to provide comparable references for pressure, temperature, valve size, cycle rate and duty.
| Brand | Best Fit to Evaluate | Main Strength to Confirm | Main Approval Check |
|---|---|---|---|
| Flowserve Edward | Main steam, reheat and high-pressure isolation | Pressure-seal gate, globe and check valve experience | Exact product family, manufacturing plant and regional repair capability |
| Velan | Mixed power-plant valve packages | Broad gate, globe, check and ball valve offering | Factory-specific references and responsibility for actuator integration |
| KSB | High-pressure steam and welded power piping | Forged and pressure-seal power valve options | Material-specific pressure-temperature rating and service support |
| Emerson Fisher | Steam control, pressure reduction and conditioning | Sizing, trim selection, automation and noise analysis | Low-load travel, outlet velocity, actuator margin and spray-water performance |
| Emerson Sempell | Turbine bypass and critical steam systems | Multistage pressure reduction and steam conditioning | Order-specific trim, desuperheating range and similar cycling references |
| IMI Critical Engineering | Severe bypass, wet-steam and repeated erosion problems | Application diagnosis and engineered trim | Complete review of drainage, operating logic and process conditions |
| MOGAS | High-cycle severe-service isolation | Metal-seated floating and trunnion ball valves | Coating system, hot torque, cavity relief and repair route |
| Valmet Neles | Automated rotary isolation and control | Ball valves, rotary trim, actuators and valve controllers | Steam references for the exact model and seat construction |
| CARILO | Project-specific forged and metal-seated ball valves | Custom materials, pressure classes and severe-service seat options | Exact quoted configuration, independent inspection and comparable steam references |
Do not use a group-level reference list as the only proof of experience. The reference should match the selected valve design, manufacturing location and service conditions.
Materials
Valve materials must match pressure, temperature, connected piping, welding requirements and the expected damage mechanism.
| Component | What to Verify | Main Risk |
|---|---|---|
| Body and bonnet | Material grade, design temperature and pressure-temperature rating | Loss of allowable strength or creep resistance |
| Weld ends | Pipe compatibility, wall transition and heat-treatment requirements | Cracking, difficult welding or unsuitable post-weld heat treatment |
| Stem | Strength, corrosion resistance, finish and galling resistance | Sticking, wear or overload |
| Seats, wedge, plug or ball | Hardness, hardfacing, erosion resistance and repair method | Wire drawing, coating damage or loss of shutoff |
| Bolting | Temperature capability and compatibility with body materials | Loss of joint load |
| Packing and gaskets | Temperature limit, friction, emissions requirement and assembly procedure | External leakage or excessive actuator load |
Cast or Forged
Cast bodies allow complex shapes and large sizes. Their quality depends on casting control, heat treatment and nondestructive examination. Forged bodies are common in small high-pressure valves and some large billet-forged designs. Neither route is automatically superior for every size.
Compare valve size, wall thickness, material grade, pressure class, required NDE, manufacturing experience, repair route and lead time.
Pressure Class Is Not a Fixed Pressure
Class 600 does not mean a constant allowable pressure of 600 psi or 600 bar. Allowable pressure changes with body material and operating temperature. Nonmetallic seats, packing and other internal components may impose lower limits than the metal pressure boundary.
ASME B16.34 covers pressure-temperature ratings, materials, dimensions, tolerances, nondestructive examination, testing and marking for many flanged, threaded, welding-end and flangeless valve constructions.[7]
Butt-Weld Ends
For butt-weld valves, define pipe material, actual wall thickness, weld-end preparation, transition pieces, preheat, post-weld heat treatment and responsibility for protecting heat-sensitive internal parts.
Also confirm which internals can be removed or repaired while the valve body remains in the pipe.
Packing
Graphite packing is common in high-temperature steam service. Packing load affects leakage and operating force. Loose packing may leak; overtight packing increases stem friction and can cause poor control response or torque-switch trips.
Live-loaded packing can help maintain stress as packing settles, but it cannot correct a scratched, bent or corroded stem.
Standards and Testing
Passing one standard does not prove that a valve is suitable for a particular power-plant service. The purchase specification must combine the piping code, valve design standard, leakage requirement, actuator calculation and project-specific tests.
Applicable Codes
For projects using ASME rules, identify the adopted edition of ASME B31.1 and the relevant boundary with ASME Boiler and Pressure Vessel Code Section I. ASME describes B31.1 as covering design, materials, fabrication, erection, testing, examination, inspection, operation and maintenance for power piping systems.[8]
Writing only “according to ASME” is not enough. State the exact code, standard, edition and project deviations.
Pressure and Seat Testing
API 598 addresses inspection, examination and pressure-testing requirements for several common industrial valve types.[9] A cold factory shell or seat test does not prove resistance to daily thermal cycling, wet-steam erosion, hot operating torque or long-term creep.
Record the test medium, pressure, holding time, flow direction, measured leakage and acceptance limit. A backseat test applies only to valves with an applicable backseat design and should not be treated as permission to replace packing under pressure.
Actuator Testing
- Full opening and closing travel
- Operation at minimum air pressure or minimum voltage
- Fail-open, fail-closed or fail-in-place action
- Opening and closing time
- Torque- and limit-switch settings
- Mechanical stops and manual override
- Position feedback and loss-of-signal response
NRC operating experience with motor-operated valves shows why static testing alone may not prove that a valve can perform its function under design-basis conditions.[10] Although that guidance concerns nuclear applications, the engineering lesson also matters in critical fossil and combined-cycle services: required thrust or torque must be checked under realistic load conditions.
Special Tests
Depending on failure consequence, specify hot functional testing, thermal-cycle testing, high-differential-pressure operation, repeated cycling, seat testing after cycling, partial-stroke testing or complete valve-actuator package testing.
Apply expensive special tests to valves whose failure can cause serious safety, equipment or production consequences rather than to every small auxiliary valve.
RFQ Checklist
Send every bidder the same data. Quotations based on different assumptions cannot be compared fairly.
| Data Group | Required Information |
|---|---|
| Service | Isolation, control or combined duty; steam state; expected condensate; cycle rate; fail position; required closing time |
| Pressure and temperature | Design pressure and temperature; maximum inlet pressure; minimum outlet pressure; maximum differential pressure; start-up and trip cases |
| Flow | Minimum, normal and maximum flow; required rangeability; allowable noise and downstream velocity |
| Piping | Pipe size, actual wall thickness, material, end connection, flow direction, installation orientation and insulation |
| Actuator | Power type, normal and minimum supply, fail action, manual override, travel time, control signal and feedback |
| Leakage | Standard, test medium, pressure, direction, temperature, allowable rate and post-cycle requirement |
| Documentation | Drawings, bill of materials, rating data, sizing calculation, torque or thrust calculation, test plan, certificates, spare-parts list and similar references |
“Operating pressure: 160 bar” is not enough. The supplier also needs the corresponding temperature, downstream pressure, opening and closing conditions, design pressure and whether the condition occurs during normal operation or a trip.
Lifecycle Cost
Compare installed lifecycle cost rather than bare valve price. Include valve and actuator price, welding, commissioning, spare trim, packing, seat repair, insulation removal, planned outage work, steam leakage, pressure-loss energy and unplanned outage risk.
For preliminary screening:
Lifecycle cost = purchase + installation + planned maintenance + energy and leakage losses + expected outage cost − residual value.
Formal financial analysis should discount future costs to present value and account for when repairs occur and how likely each failure event is.
Steam Leakage Volume
Even a modest continuous seat leak becomes a large annual mass loss. The table assumes 8,760 operating hours per year and shows mass only; the monetary value depends on the plant’s actual cost of fuel, make-up water, treatment chemicals and lost generation.
| Continuous Steam Leakage | Annual Steam Loss | 10-Year Steam Loss |
|---|---|---|
| 10 kg/h | 87.6 tonnes/year | 876 tonnes |
| 50 kg/h | 438 tonnes/year | 4,380 tonnes |
| 100 kg/h | 876 tonnes/year | 8,760 tonnes |
Annual leakage cost = leakage rate × annual operating hours × site steam cost per unit mass. For intermittent plants, replace 8,760 hours with the expected annual operating hours.
Illustrative 10-Year Cost Comparison
| Illustrative 10-Year Cost | Option A | Option B |
|---|---|---|
| Valve and actuator | $60,000 | $95,000 |
| Installation | $20,000 | $20,000 |
| Planned repairs | 4 × $18,000 = $72,000 | 1 × $25,000 = $25,000 |
| Outage support | 4 × $25,000 = $100,000 | 1 × $25,000 = $25,000 |
| Illustrative total | $252,000 | $165,000 |
This is a hypothetical calculation example, not a market price guide. In this case, the higher purchase-price option costs $87,000 less over ten years because it needs fewer repairs and outage events.
Final Selection Checklist
- Confirm whether the duty is isolation, control or both.
- Calculate the worst credible pressure, temperature, flow and differential-pressure cases.
- Select the valve type before selecting the brand.
- Verify material pressure-temperature ratings and nonmetallic component limits.
- Check pressure locking, thermal binding or body-cavity pressure as applicable.
- Review actuator output at minimum power supply and realistic hot-service load.
- Define a measurable leakage requirement and test condition.
- Request references for the exact product family and manufacturing location.
- Compare lifecycle cost, repair capability and spare-part lead time.
- Approve the complete valve-actuator package, not the valve body alone.
Conclusion
For large main-steam and reheat isolation, a properly engineered gate valve normally gives the lowest full-open pressure loss. For turbine bypass, pressure reduction and stable low-load control, use a globe or angle valve with calculated trim, noise and desuperheating performance. For frequent or rapid on/off service, a metal-seated ball valve can reduce travel time and cycling wear, but only when hot torque, cavity relief, leakage and closing transients are verified. Compare brands with the same operating cases, test requirements and documentation so that the final decision reflects service risk and lifecycle cost rather than catalogue pressure class or purchase price alone.
